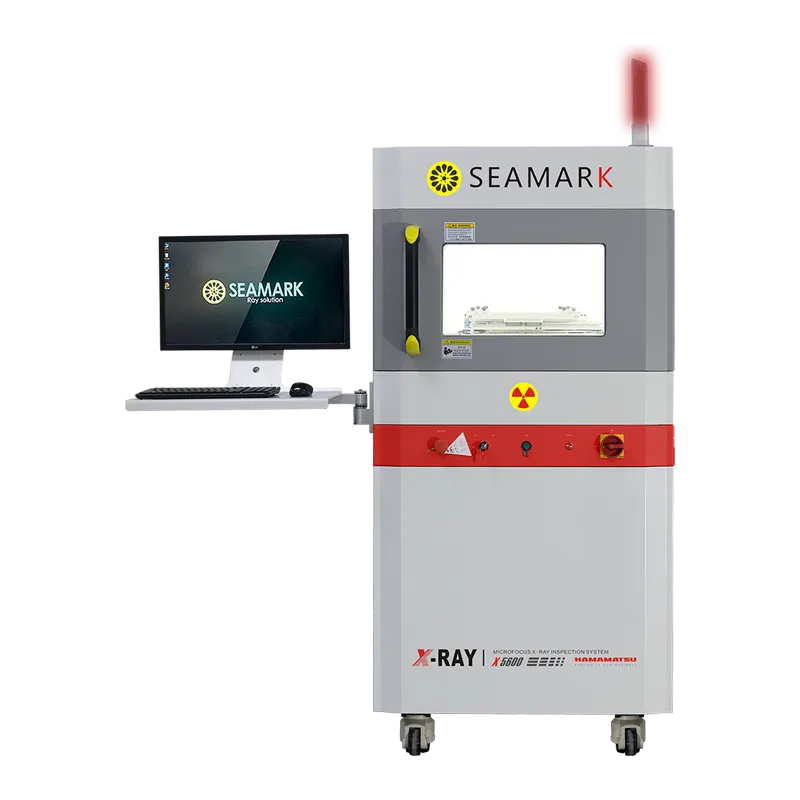

X5600 is a small precise microfocus X-Ray inspection equipment, suitable for R&D enterprises, laboratories, quality inspection rooms, etc. It is the first choice for X-Ray inspection equipment of small parts.
IC chip X-ray inspection machine is a piece of non-destructive testing equipment especially for prospective testing of internal defects of IC chips. It is one of the best ways to detect defects of IC chips. The X-ray detection equipment mainly relies on the internal X-ray tube to emit X-rays to irradiate the IC chip for imaging. After the X-rays penetrate the object, the digital tablet receives the image signal and then transmits it to the computer. After software processing, it will image in real-time on the screen. X-ray testing belongs to the category of nondestructive testing for IC chips. The tested samples can be put into use again, which can effectively save the production and inspection cost.
Compact equipment design for easy placement and convenient operation
High-resolution design enables optimal image capture in minimal time
Equipped with tilt inspection capability for multi-angle observation of component features; includes a rotary manipulator for 360° imaging, ensuring defect inspection with no blind spots
CNC inspection mode for rapid, automated detection of multi-point arrays
Miniaturized equipment, easy to install and operate.
Applicable to Chip, LED, BGA/CSP, Wafer, SOP/QFN, SMT and PTU packaging, Sensors, Connectors, and Precision Castings inspection.
High resolution design to get the best image in a very short time.
Infrared automatic navigation and positioning function can select the shooting location quickly.
CNC inspection mode which can quickly and automatically inspect multi-point array.
Inclined multi-angle inspection makes it easier to inspect sample defects.
Simple softwareoperation, low operating costs.
Long lifespan.
| X-Ray Tube Source Specification | |
| Type | Sealed Micro-Focus X-Ray Tube |
| voltage Range | 40-90KV |
| current Range | 10-200 μA |
| Max Output Power | 8 W |
| Micro Focus Spot Size | 15μm |
| Flat Panel Detector Specification | |
| Type | TFT Industrial Dynamic FPD |
| Pixel Matrix | 768×768 |
| Field of View | 65mm×65mm |
| Resolution | 5.8Lp/mm |
| Frame（1×1) | 40fps |
| A/D Conversion Bit | 16bits |
| Dimensions | L850mm×W1000mm×H1700mm |
| Input Power | 220V 10A/110V 15A 50-60HZ |
| Max Sample Size | 280mm×320mm |
| Control System | Industrial PC WIN7/ WIN10 64bits |
| Net Weight | About 750KG |
Obtained an exemption record from the Ministry of Ecology and Environment of the People's Republic of China
The X5600 obtained the certification document (sixth batch) for the exemption record of radioisotope and ray device of the Ministry of Ecology and Environment, with the record number [Yuehuan [2018] No. 1688]. The radiation device using this product model of our company can be exempted from the radiation safety license.
Safety Protection Design
According to the "Ionizing Radiation Protection and Radiation Source Safety Basic Standards" (GB18871-2002), the radiation protection exemption standard is ≤1uSv/h, the design standard of this product is ≤0.5uSv/h, it is equivalent to 1/10 of the amount of radiation in the natural environment.
Components Multiple Safety Protection
Equipped with OMRON's safety control element, triple safety protection sensor, and direct connection control method with ray source, it fully complies with CE specifications and SEMI S2/S8 specifications of the semiconductor industry.
See also X6600/X7600/X1200/XB8100/XB8200/XD160.
